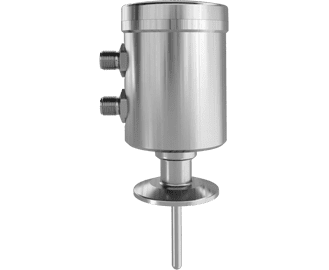

TSBF温度变送器

Application/Specified usage ·Temperature sensor in big housing for food applications ·Aseptic temperature process connections without product contact for inline, precise and fast measurement. Prefabricated thermowells and build-in systems avoid opening process. ·Demounting the sensor without opening the process and without electrical disconnection avoid downtime of the equipment at calibration and maintenance. Application examples ·Monitoring of CIP-/SIP-process ·Safe temperature measurement in hot steam and pressurized pipes ·Measurement in vessels with agitators with front flush version ·Temperature monitoring in vessels or pipes
过程连接 CLEANadapt │ Tri-Clamp │ Varivent │ FLEXadapt ESF │ Thread | Without thread
插入长度 0…2000 mm (flush version available)
测量范围 -200 °C …+400 °C
准确性 < ±0.1 K
可用版本 Head Ø57 or 63 mm │ Display │ Spacer │ 0, 1, 2 Transmitter │ 1, 2 RTDs │ Pt100, Pt1000 │ Precision class A, AA, AAA
运营压力 max. 50 bar | 10 bar (Dependent on type )
通讯 4…20 mA, IO-Link
Features/Advantages
· High accuracy and high ambient temperature resistance
· Customer offset and slope adjustment
· Flex hybrid mode with digital IO-Link or analog 4...20 mA
· Process temperature range -50...250 °C (-58...482 °F)
· Extended temperature range -200...400 °C (-328...752 °F)

Hygienic design/Process connection
· Hygienic process connection with CLEANadapt or FLEXadapt
· Versions available to conform to 3-A Standard 74-
· All wetted materials are FDA-conform
· Sensor completely made of stainless steel or stainless steel and PEEK

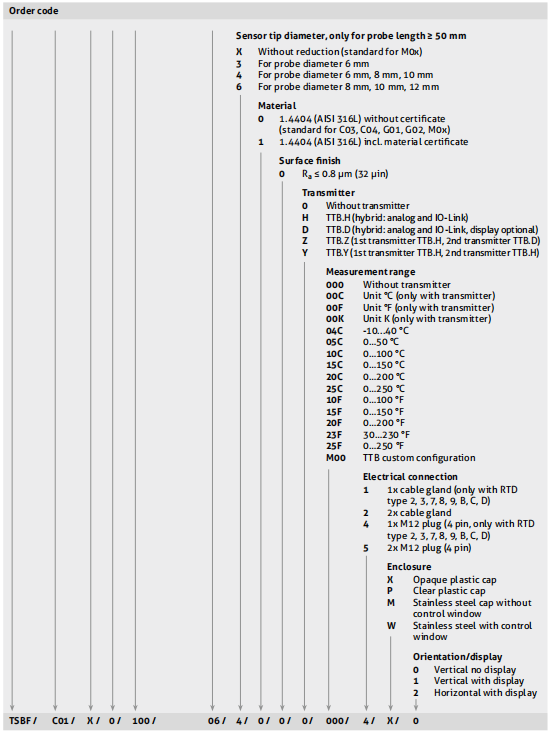

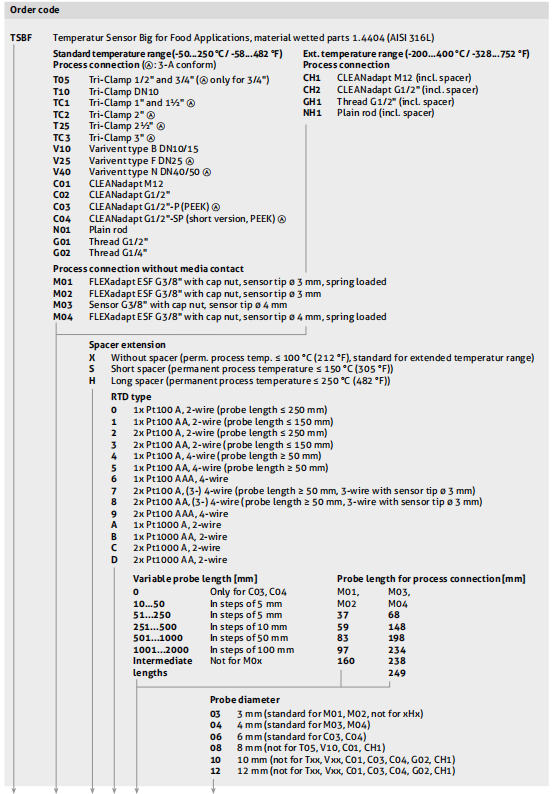

· Complete overview of process connections: see order code
· The Anderson-Negele CLEANadapt and FLEXadapt system offers a flow-optimized, hygienic and easily sterilizable installation solution for sensors.
