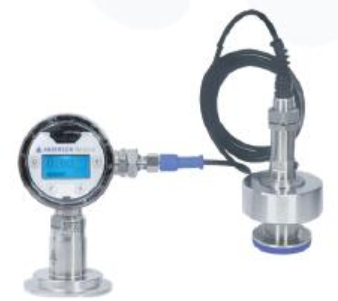

D3P制药级差压液位计
Range of applications
·Head pressure and level measurement in pressurized vessels with continuous process temperature up to 110°C (230°F)
·Differential pressure measurement across filters
·CIP/SIP at 135°C (275°F) for 1 hour when ambient is below 60°C (140°F)
Application examples
·Hygienic pressure and level monitoring for life science applications
·Bio-reactor level and head space monitoring
·Filtration processes
· Intuitive user interface makes set-up and configuration easy
· Electronic Differential provides 2 analog outputs (differential pressure and top or bottom pressure)
· State of the art temperature compensation minimizes error in dynamic temperature applications
· Fully electronic differential allows field replacement of components and repairability.
· Integrated tank tables allows volume and mass output when tank and product information are input
· Available in relative (vacuum and pressure)
· Patented dual o-ring seals provide IP69K ingress protection
· Dual loop output with Hart 7.0 communication and graphical LCD display
Hygienic design/Process connection
· Front flush, 3-A installation for silos by Anderson flush fitting, E&H universal, or tank spud connections
· Conforming to 3-A Sanitary Standard 74-06 with Tri-Clamp®DIRECTadapt
· Product contacting materials compliant to FDA
· Sensor and product contact surfaces made of stainless steel
· Available with over 20 integral hygienic connections, more available through CLEANadapt adapters
