CLEANadapt M12, G1/2"
PHARMadapt ESP G3/8" Sensor with cap nut, sensor tip ø 3 mm
Sensor G3/8" Sensor with cap nut, sensor tip Ø 4 mm
PHARMadapt EPA 8, 18
Ingold (Fermenter) 46 mm, 52 mm
Tri-Clamp 1/2", 3/4", DN10, 1", 11/2", 2", 21/2", 3" (DIN 32676)
Thread G1/4", sensor tip Ø 3 mm (DIN ISO 228)
Plain rod
· High accuracy and high ambient temperature resistance
· Customer offset and slope adjustment
· Flex hybrid mode with digital IO-Link and analog 4...20 mA
· Process temperature range -50...+250 °C / -58...+482 °F
Hygienic design/Process connection
· Hygienic process connection with CLEANadapt or PHARMadapt
· Versions available to conform to 3-A Standard 74-
· All wetted materials are FDA-conform
· Sensor completely made of stainless steel

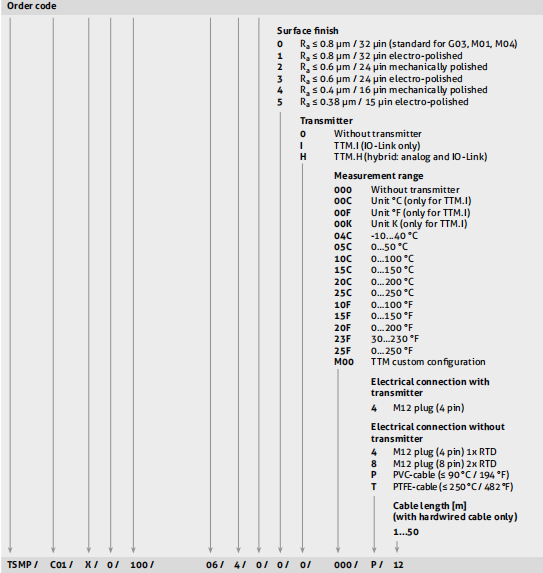

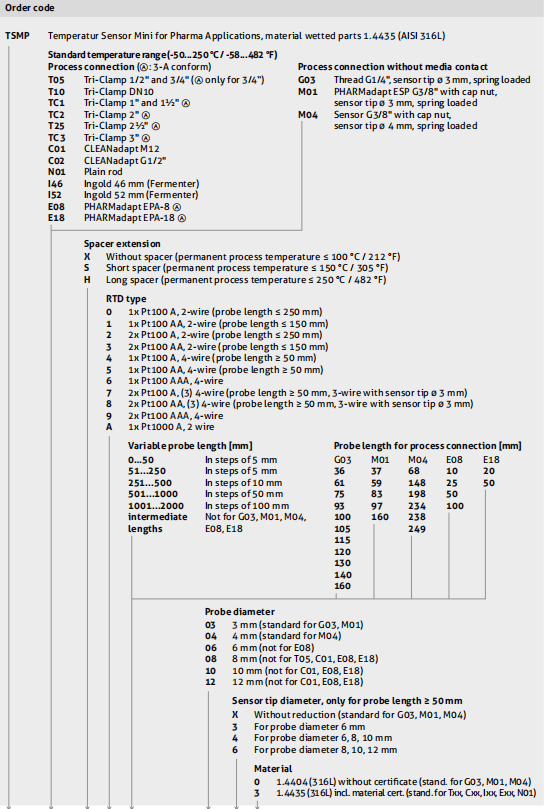

· Complete overview of process connections: see order code
· The Anderson-Negele CLEANadapt and PHARMadapt system offers a flow-optimized, hygienic and easily sterilizable installation solution for sensors.
